Patching QLab (is simpler than you would think)
Let me prefix this post by saying: QLab is an amazing piece of software. If you have the budget, please support the developers. This post purposefully doesn’t provide pre-patched files, just observations from reverse-engineering QLab.
Introduction
QLab is a theatre cueing system that allows you to control audio, video, lighting, and more from a centralized list of cues. It has a generous free tier and a lot of capabilities… until you want to add an audio filter or seriously use lighting. After discovering these issues, I ran to my director and begged her to buy tech a QLab license, but to no avail, since we were truly running on a shoestring in my community theater. So, I set out on my own quest…
Recon and Initial Analysis
To start, I opened the Mach-O binary in aarch64 mode in Binary Ninja. I’m running this on a real physical Mac, which means that I’m stuck with Apple silicon and therefore, ARM. This doesn’t prove to be too much of an issue, really, but analysis took exponentially longer as compared to x64 for some obscene reason. After about an hour of Binja chugging away at the binary. But once it loads…

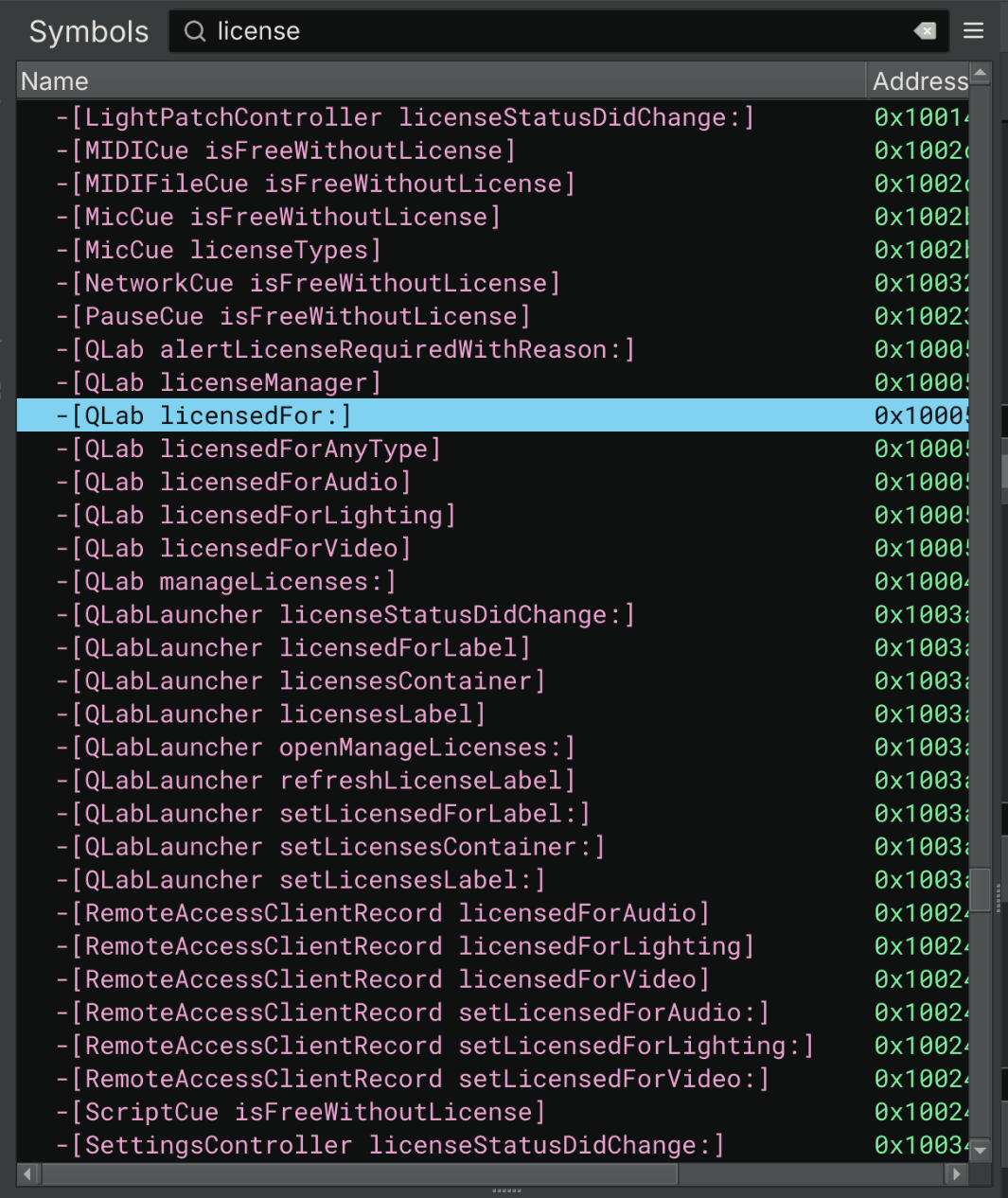

Oh yes. Oh yes! Symbols! So many symbols! You really love to see it. Tracing everything back, most (if not all) of the licensing checks in the entire app trace back to -[QLab licensedFor:]. A simple patch of the last opcode gets us a function that always returns 0x1 (true):
1000503fc bool -[QLab licensedFor:](struct QLab* self, SEL sel, id licensedFor)
1000503fc f657bda9 stp x22, x21, [sp, #-0x30]! {__saved_x22} {__saved_x21}
100050400 f44f01a9 stp x20, x19, [sp, #0x10] {__saved_x20} {__saved_x19}
100050404 fd7b02a9 stp x29, x30, [sp, #0x20] {__saved_x29} {__saved_x30}
100050408 fd830091 add x29, sp, #0x20 {__saved_x29}
10005040c f30300aa mov x19, x0
100050410 e00302aa mov x0, x2
100050414 70e91594 bl _objc_retain
100050418 f40300aa mov x20, x0
10005041c e00313aa mov x0, x19
100050420 f49a1694 bl 0x1005f6ff0 {data_100050424}
100050424 fd031daa mov x29, x29 {__saved_x29}
100050428 74e91594 bl _objc_retainAutoreleasedReturnValue
10005042c f30300aa mov x19, x0
100050430 e20314aa mov x2, x20
100050434 578e1694 bl 0x1005f3d90 {data_100050438}
100050438 f50300aa mov x21, x0
10005043c e00314aa mov x0, x20
100050440 62e91594 bl _objc_release
100050444 e00313aa mov x0, x19
100050448 60e91594 bl _objc_release
10005044c 200080d2 mov x0, #0x1 ; <- Patched line
100050450 fd7b42a9 ldp x29, x30, [sp, #0x20] {__saved_x29} {__saved_x30}
100050454 f44f41a9 ldp x20, x19, [sp, #0x10] {__saved_x20} {__saved_x19}
100050458 f657c3a8 ldp x22, x21, [sp], #0x30 {__saved_x22} {__saved_x21}
10005045c c0035fd6 ret
And, of course, all the other checks for licensing just go to this one function:
100050460 bool -[QLab licensedForAudio](struct QLab* self, SEL sel)
100050460 {
100050460 /* tailcall */
1005f70c0 return _objc_msgSend(self, "licensedFor:");
100050460 }
10005046c bool -[QLab licensedForVideo](struct QLab* self, SEL sel)
10005046c {
10005046c /* tailcall */
1005f70c0 return _objc_msgSend(self, "licensedFor:");
10005046c }
100050478 bool -[QLab licensedForLighting](struct QLab* self, SEL sel)
100050478 {
100050478 /* tailcall */
1005f70c0 return _objc_msgSend(self, "licensedFor:");
100050478 }
100050484 bool -[QLab licensedForAnyType](struct QLab* self, SEL sel)
100050484 {
100050484 if (!(-[QLab licensedForAudio](self, "licensedForAudio") & 1) && !(-[QLab licensedForVideo](self, "licensedForVideo") & 1))
1005f7140 /* tailcall */
1005f7140 return _objc_msgSend(self, "licensedForLighting");
1005f7140
1000504b4 return 1;
100050484 }
In order to use this patch on a Mac, you’ll have to resign the .app bundle with an ad-hoc key:
codesign --force --deep --sign - /path/to/QLab-Patched.app
chmod -R +x /path/to/QLab-Patched.app
xattr -r /path/to/QLab-Patched.app
To verify that everything is signed correctly:
codesign -vvv --deep --strict /path/to/QLab-Patched.app
That’s all, folks
This was much shorter of a post that I anticipated, frankly. I was expecting to have to patch a lot more than a single opcode, but here we are, with a patch that works for every single licensed feature with no hassle whatsoever. This feels a bit immoral to publish, so I might end up keeping this post private out of principle. But, if you are in the future reading this, clearly I published something.
As always, written with :heart: by N3rdL0rd.
