Decompilation Notes

Introduction

This document contains notes on what code patterns compile to in the HashLink bytecode. It is intended to be a reference both for the implementation of the crashlink decompiler and for anyone interested in reading and understanding HL opcodes.

Registers

A register is a strictly typed single slot for data at runtime. Every function has a list of registers that it uses to store data - they store every value that is used in the function as a local. Register names can be inferred by the assigns debug field, which stores opcode indexes that correspond to assigning a variable. Sometimes, assigns will contain negative opcode indices - this means that the variable names being referred to are arguments. If a function is not static, then the first argument will always be this, and there will be no corresponding assignment for it.

If Statements

Sample: tests/haxe/If.hx

In the case of an empty if statement:

var a = 500;
if (a > 400) {

}

The following is generated:

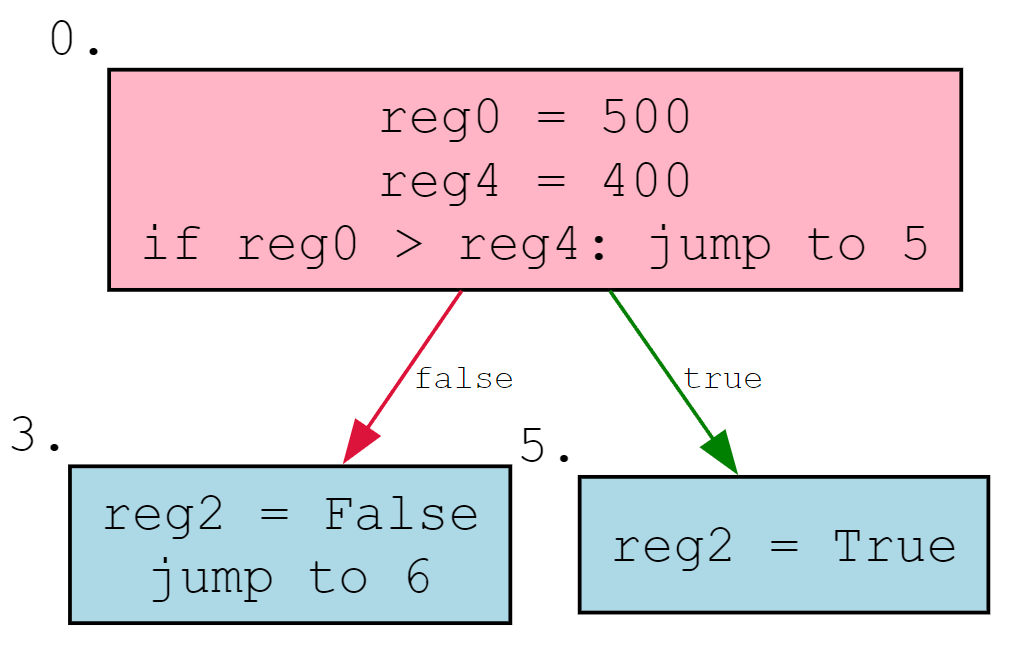

Presumably to avoid implementing additional logic for empty if statements, the result of the condition is always stored in a register, even if it is not used. This only applies to if statements with empty bodies. Note that reg2 is Void here, just discarding the result.

As for any other programming language's control flow graphs, if statements make a sort of "diamond" shape in the bytecode - the conditional jump splits the flow into two paths, and at some point they merge back together to one node. crashlink uses a simple approach of following the two control flow paths and finding where they merge to generate IR if conditional blocks.

Loops

Sample: tests/haxe/LoopWhile.hx

This sample is a simple while loop. Its control-flow graph shows the shape crashlink actually looks for: a Label node with a back edge from later in the function, forming a cycle that dominates itself.

Notably, all loops in HashLink start with a Label opcode. It's not entirely known why this is the case, but it's incredibly useful to us as it allows us to easily identify loops, since the Label opcode is only used at the beginning of a loop and is not generated anywhere else by the Haxe compiler.

note

The reason for Label is now understood: it's a JIT requirement, not (just) a compiler convenience. The JIT's register allocator caches vreg values in CPU registers while emitting code linearly; a back-edge into a loop head would use those stale cached registers for the next iteration. OLabel calls discard_regs(ctx, false), forcing the allocator to reload vregs from their stack slots. A hand-written loop with a back-edge and no Label at its head is silently miscompiled: loop variables keep values clobbered by the previous iteration's body. If you emit loops in hand-written bytecode, always put a Label at the loop head.

warning

Although HashLink is a Haxe-only bytecode target and the Haxe compiler is the only compiler that generates HashLink bytecode, it is not guaranteed that the Label opcode will always be at the beginning of a loop - and if other languages start targeting HashLink, this assumption may no longer hold true. Long-term, it would always be best to use the CFG to identify loops more robustly.

See that warning right above this sentence? crashlink ignores it (YOLO)! crashlink handles loops by following these simple steps:

• Look for Label opcodes
• Once one is encountered, perform an isolated abstract lift to IR for the current block (the condition)
• Find all other paths down the CFG that will jump back up to this Label
• Lift all nodes in these paths to IR

And just like that, we can handle a basic loop with no optimizations!

crashlink> ir 22
<IRBlock:
[<IRAssign: <IRLocal: b I32> = <IRConst: 69> (I32)>,
        <IRBlock:
        [<IRPrimitiveLoop: cond -> <IRBlock:
                [<IRAssign: <IRLocal: reg3 I32> = <IRConst: 5> (I32)>,
                        <IRPrimitiveJump: <Opcode: JSGte {'a': 3, 'b': 0, 'offset': 4}>>]>
                 body -> <IRBlock:
                [<IRAssign: <IRLocal: reg3 I32> = <IRConst: 2> (I32)>,
                        <IRAssign: <IRLocal: b I32> = <IRArithmetic: <IRLocal: b I32> - <IRLocal: reg3 I32>> (I32)>,
                        <IRAssign: <IRLocal: b I32> = <IRLocal: b I32> (I32)>,
                        <IRBlock>]>>]>]>

Array Literals

Sample: tests/haxe/ArrayAccezz.hx

static function array() {
    return [1, 2, 3];
}

A fixed-size Array<Int> literal like this one doesn't compile to any single "make array" opcode. Instead the Haxe compiler lowers it to a raw byte buffer: an alloc_bytes native call sized to element_count * element_size, followed by one store per element (each index pre-shifted, e.g. << 2 for I32/F32, << 3 for F64, << 1 for UI16), followed by a call to a typed-array allocator native (allocI32, allocF32, allocF64, or allocUI16) that wraps the bytes into an hl.types.ArrayBase subtype.

IRArrayPatternOptimizer in crashlink/decomp/opt/arrays.py reverses this: it walks forward from the alloc_bytes assignment, matches a run of bytes[idx << shift] = value; idx++ stores (accepting a handful of equivalent shapes, since the compiler sometimes hoists the shifted index or the store value into their own temporaries first), and once the store count and the following alloc* call agree, replaces the whole run with a single IRArrayLiteral. The shift amount doubles as a type tag - _ALLOC_SHIFTS maps each alloc* name back to the expected shift, so a mismatched shift (wrong element size) blocks the fold rather than misreading the buffer.

Object-element arrays like [new TestClass(), new TestClass()] take a different route entirely: alloc_array(type, size) allocates a boxed Array, individual arr[i] = expr stores populate it (optionally preceded by the element's own constructor call as a separate statement), and the whole thing is wrapped by ArrayObj.anon(arr). IRArrayPatternOptimizer._try_array_obj_literal looks for exactly this alloc/store/wrap sequence and, when it finds it, also inlines a preceding single-use var9 = new TestClass() into the literal slot itself so element construction order survives the fold.

String Concatenation

Sample: tests/haxe/StringConcat.hx

var a = "hello" + "world";
var c = 3;
var b = "number : " + c;

Every + between strings (or a string and a value that needs stringifying) compiles to a call to String.__add__, not an opcode of its own - "a" + "b" + "c" becomes nested __add__(__add__("a", "b"), "c") calls, which after temp-elimination usually show up as a straight-line chain: temp = "a"; temp = __add__(temp, "b"); temp = __add__(temp, "c");. IRStringConcatFolder in crashlink/decomp/opt/strings.py walks that chain and collapses it back into one nested __add__ expression at the use site so pseudo can print it with Haxe's + operator instead of a chain of temp assignments.

Concatenating a non-string value ("number : " + c where c is an Int) goes through an extra step first: HashLink calls itos(value, ref(value)) (or ftos for floats) to render the number into a byte buffer and get its length back through the ref argument, then wraps that buffer with String.__alloc__(bytes, length) before it ever reaches __add__. IRStringIntConcatOptimizer recognizes __alloc__(itos(x, &x), x) - matching the ref argument back to the same local used as the value - and collapses the whole thing down to the bare integer local, so the fold above sees a normal __add__(str, intLocal) instead of the conversion plumbing.

Switch Statements

Sample: tests/haxe/Switch.hx

var a = 3;
var b = switch (a) {
    case 0: a * 2;
    case 3: a - 1;
    default: a << 2;
}

An integer switch with a small dense range of cases lowers to HashLink's native Switch opcode (a jump table), which crashlink lifts directly to IRSwitch. The CFG shows why this case is easy: Switch is a genuine N-way branch, one edge per case plus a default, all converging on the same successor.

But a sparse or negative-valued case set - not dense enough to justify a table - compiles instead to a chain of nested if (x != c1) { if (x != c2) { ... } else {...} } else {...} equality checks. IRIntSwitchOptimizer in crashlink/decomp/opt/switches.py walks that conditional chain, and as long as every link compares the same local against a distinct integer constant, re-raises it into a single IRSwitch with the original cases and the innermost unmatched branch as default.

String switches lower even further from the source shape: HashLink first null-checks the scrutinee, then guards on s.length before ever comparing content, then chains std.string_compare(s.bytes, "case", len) == 0 calls for each case, falling through to the next comparison on a nonzero result. IRStringSwitchOptimizer matches that null-check/length-guard/compare-chain shape and rebuilds an IRSwitch keyed by the literal case strings, stitching together cases that got split across sibling statements by the CFG lifter (a string_compare chain doesn't structurally nest the same way an int-switch's if chain does).

Enum-Pattern Switches

Sample: tests/haxe/Enums.hx

enum Color {
  Red;
  Green;
  Blue;
  Rgb(r:Int, g:Int, b:Int);
}
...
switch (c) {
    case Red: trace("red");
    case Rgb(r, g, b): trace("Color had a red value of " + r);
    ...
}

Haxe enum values are HashLink Enum objects tagged with a constructor index; switching on one lowers to an EnumIndex opcode extracting that index, followed by an ordinary integer Switch on it. Without further processing this decompiles as switch (enumIndex(c)) { case 0: ...; case 3: ...; } - correct, but unreadable, since the case labels are bare integers instead of constructor names.

IREnumSwitchOptimizer in crashlink/decomp/opt/switches.py looks for exactly the idx = EnumIndex(value); switch (idx) { ... } pair, resolves the enum's Type.definition to get its constructs list, and rewrites each integer case constant to the matching constructor's name (Red, Green, Rgb, ...), producing switch (c) { case Red: ...; case Rgb: ...; }. Recovering the constructor's bound parameters (Rgb(r, g, b) rather than just Rgb) is a separate step: parameter reads lower to r = value.param0 field-style accesses inside the case body, which pseudo recognizes and folds into the case pattern itself.

See also: The Asm Opcode and Inline x86 for Asm/inline-x86-machine-code opcodes, which crashlink cannot decompile past.
